Subflow - Missing Alert Template Notification

For more information about ‘Observable Extraction Rules’ (template) errors, navigate here
The “Subflow - Missing Alert Template” workflow is an on-demand process designed to notify internal recipients when there is an error with an observable extraction rule (template) in the Extract Observable Action Specifically, it handles situations where:
  • A required alert template is missing
  • An alert template is misconfigured (bad template)
  • A general alert error occurs
The workflow identifies the type of error and automatically sends the corresponding email notification to the appropriate recipient. You can customize which notifications are sent by enabling or disabling them in the step settings of the selected step to match your requirements.

​
Trigger Section

​
Trigger Type: On-Demand

The subflow expects three input parameters:

​
1. errors

  • The error message returned during alert processing.
  • Determines the classification of the issue.
  • Example values:
    • Missing_Template
    • Bad_Template
    • Other general error types
This parameter is the key driver for the branching logic.

​
2. payload

  • The full alert object payload.
  • Contains metadata such as:
    • alert_id
    • name
    • Any other contextual information needed for notification.

​
3. recipient

  • The internal email address that will receive the notification.
  • Must be a valid email address.
  • Typically assigned to someone responsible for maintaining or configuring templates.

​

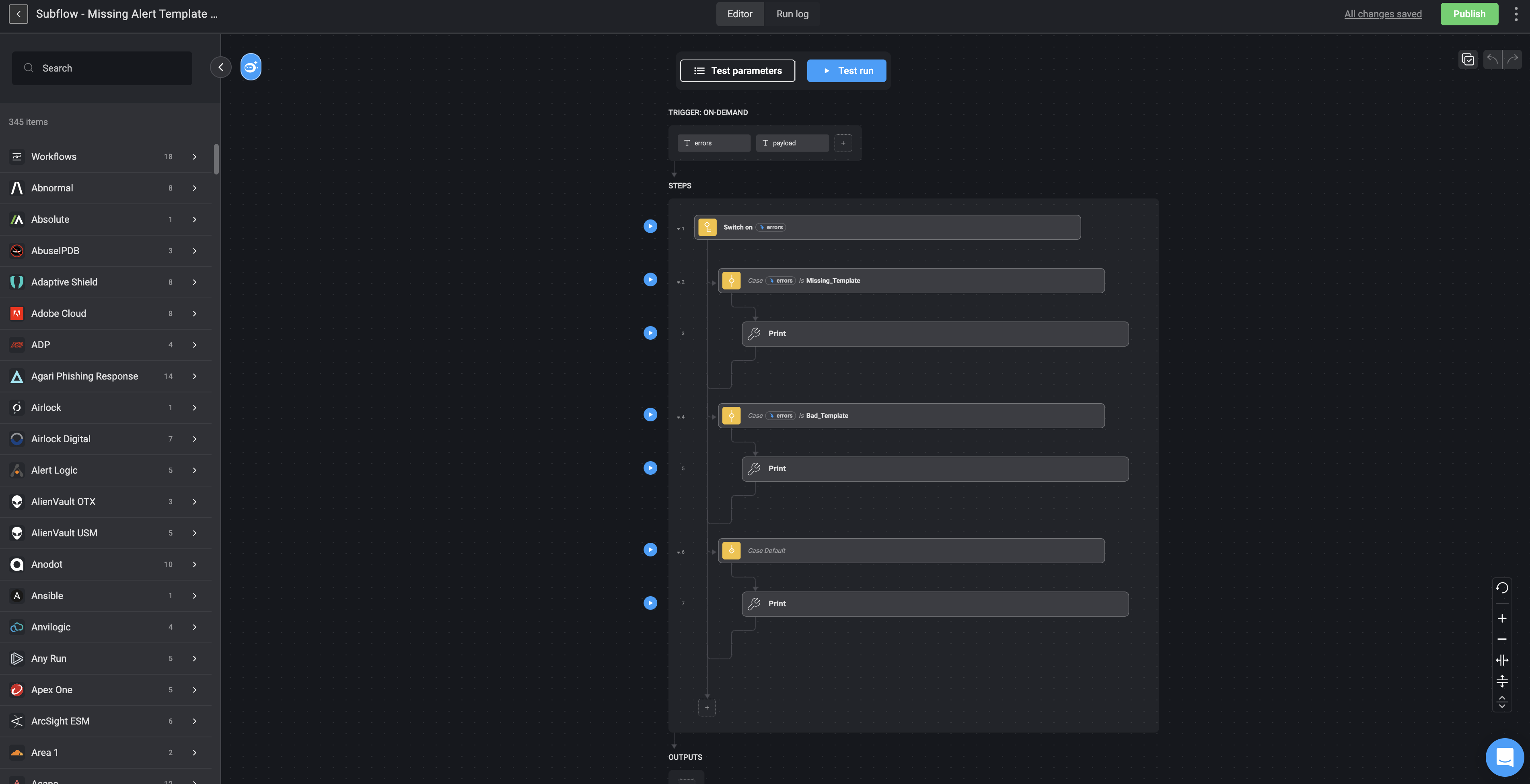

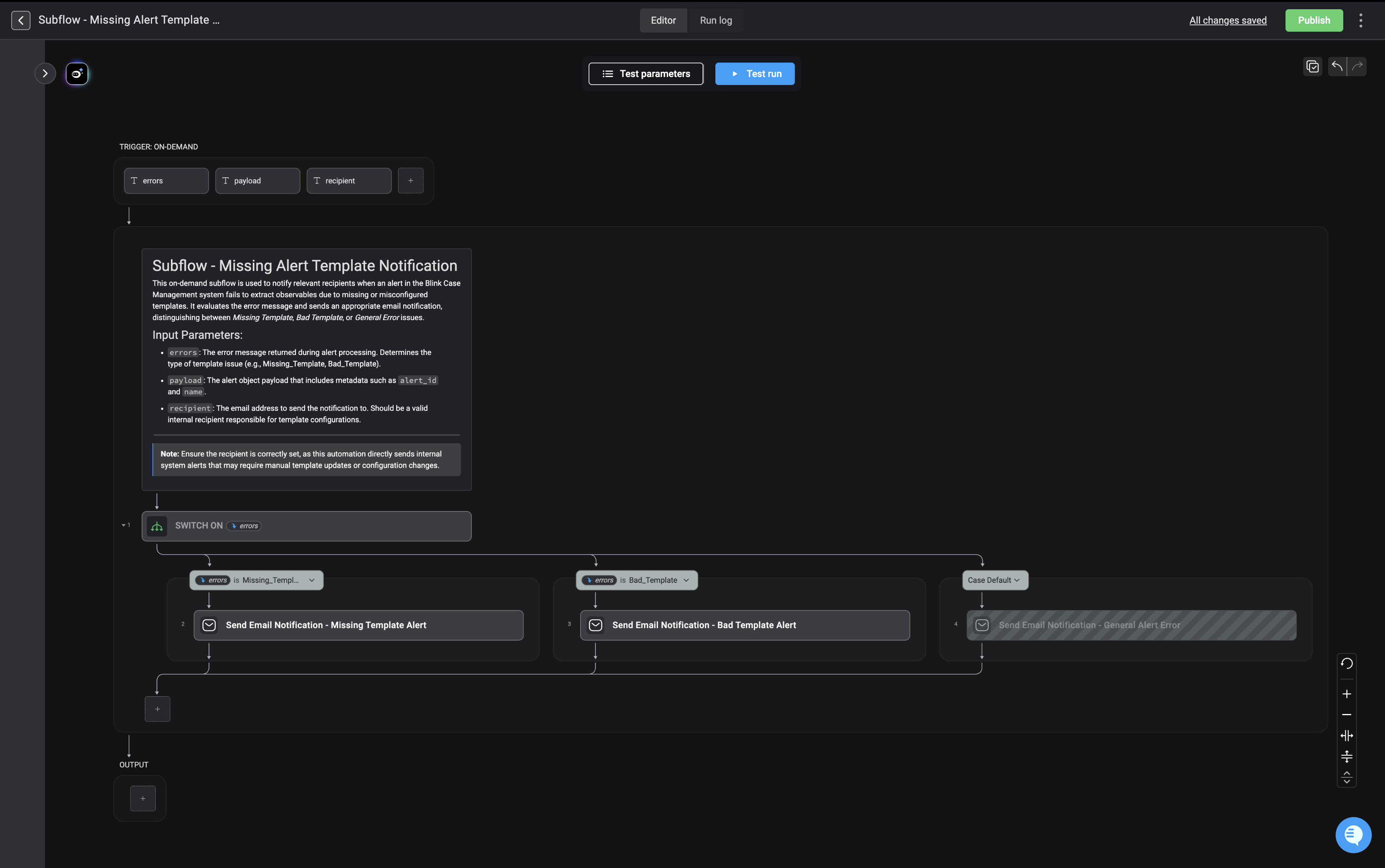

Main Logic: Switch on errors

After receiving the inputs, the workflow uses a Switch condition on the errors parameter. This acts like a decision tree:
  • It evaluates the value of errors
  • Routes execution to the matching branch

​
Branch 1: Missing Template

Condition: errors is Missing_Template Action: Send Email Notification – Missing Template Alert This email informs the recipient that:
  • A required alert template does not exist
  • Manual intervention may be required to create or restore it

​
Branch 2: Bad Template

Condition: errors is Bad_Template Action: Send Email Notification – Bad Template Alert This email informs the recipient that:
  • The template exists
  • But it is misconfigured, malformed, or invalid
  • Configuration needs to be reviewed and corrected

​
Branch 3: Default Case (General Error)

Condition: Any other error value not matching the first two cases Action: Send Email Notification – General Alert Error This ensures:
  • No alert failure goes unnoticed
  • Even unclassified or unexpected errors are reported
  • There is a safety net for edge cases

​
Output

After sending the appropriate email notification, the subflow completes execution. There are no additional transformations or returned values shown in this design.
