In this tutorial we will show you how to create a Workflow that consumes a Terraform project. Based on calculated changes (Terraform plan) and escalation rules, it asks for approval and deploys the changes. Once created, the Automated Workflow will be exposed in the Self-service portal of selected users and groups. Selected users are able to create a new environment on demand with an approval step, conditioned by your escalation rule. In our example the project deploys a load-balanced web server. Approval will be required if the instance type selected by the user is not the default one or if deletion of resources is detected in calculated changes.

​
Prerequisites

​
Overview

This is an overview of the procedure of creating the On-Demand Workflow. Before we begin.
  1. Creating a new Pack.
  2. Creating a new Automation.
  3. Setting input parameters.
Creating Workflow Steps:
  1. Using an if Step to control the workflow.
  2. Asking permission via Slack.
  3. Using if Step to check answer.
  4. Aborting the Step.
  5. Cloning the Git repository.
  6. Installing the Terraform provider.
  7. Calculating the Plan to execute for Terraform.
  8. Saving the plan to an AWS S3 bucket
  9. Using an if Step to control the workflow.
  10. Asking a question via Slack.
  11. Using if Step to check answer.
  12. Aborting the Step.
  13. Cloning the Git repository.
  14. Fetching the plan from the AWS S3 bucket
  15. Applying the changes in Terraform.
  16. Getting output in Terraform.
Defining output parameters. Testing the Automation. Exposing the Automation as a request in the Self-service portal.

​
Before we begin

​
Creating a new Pack

A Pack is a collection of Workflows. If you already have a Pack you can open it and skip ahead to creating a new Automation. If you don’t have an existing pack, follow these steps:
  1. On your Automation screen, click Create new Pack.
  2. Enter Pack name: Infrastructure as Code portal Description: portal of Infrastructure as Code Workflows.
  3. Click Create. The new Pack is displayed on your Workflows screen.

​
Creating a new Automation

  1. Click Create Automation.
  2. Enter Automation name: AWS webserver with Terraform as a service
  3. Select a type of trigger: Manual
  4. Click Create Automation. You are redirected to the Edit page of the Automation.

​
Setting input parameters

  1. Click Input Parameters.
  2. Fill in the parameters:
Parameter NameDescriptionSelection typeOptions
instance_typeThe size of the instance.Single-selectt2.micro (default), t2.medium, t2.large
reasonReason for request. Will be sent with the approval request if the user selects a non default instance size.String
  1. Click Apply. The parameters are displayed under Input Parameters.

​
Creating the Automation Steps

You have created an Automation with Input Parameters. Proceed to create the Steps of your Automation as described in the following section.

​
Step 1: Using an if Step to control the workflow

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.

  2. Select if Step using the icon:

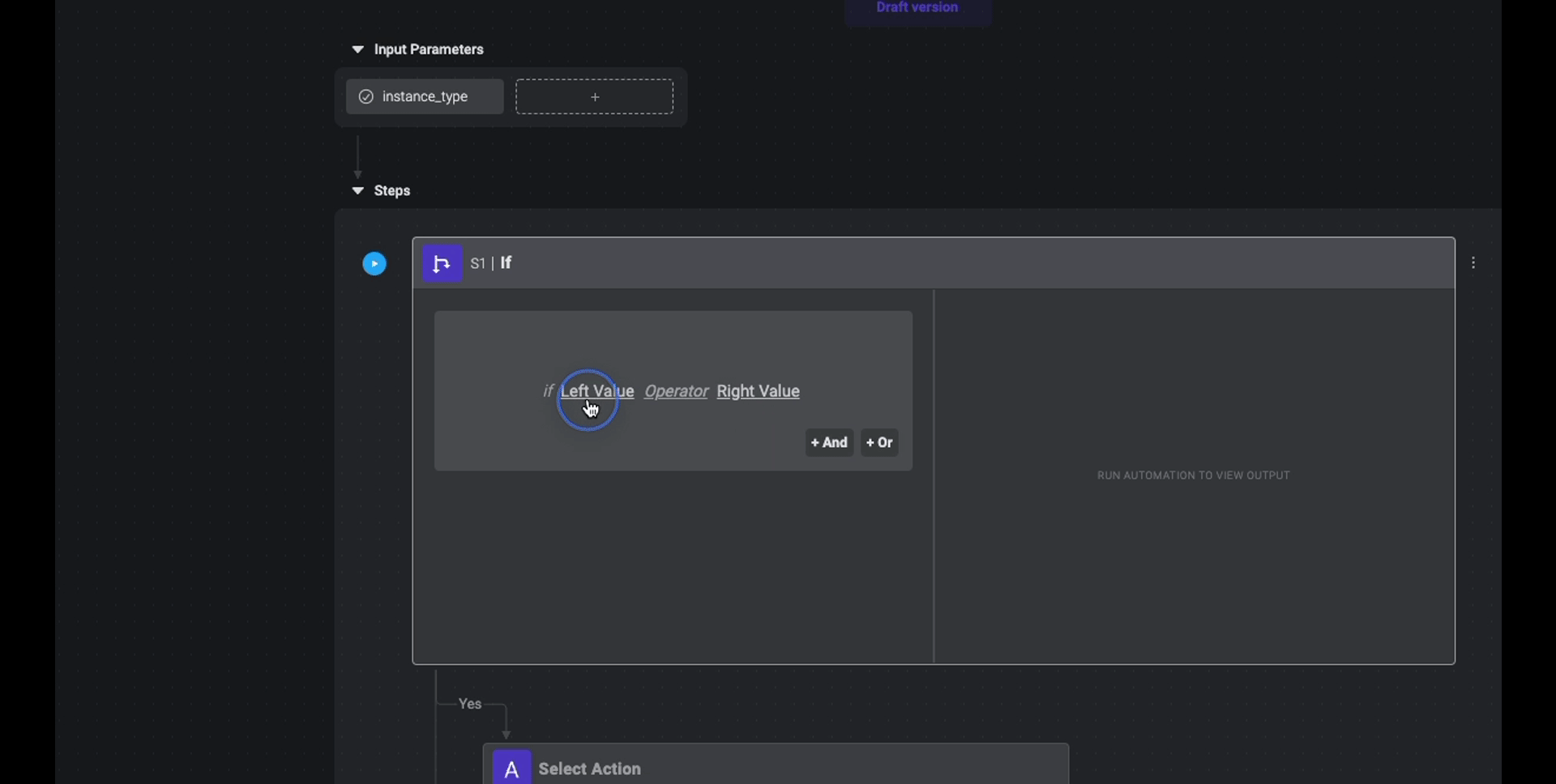

  3. Enter the condition using the variable picker.
Left valueOperatorRight value
{{inputs.instance_type}}Not equalst2.micro
If the instance type is not t2.mirco. If the condition is met (need escalation), go to Step 2. If the condition is not met (instance type is t2.micro, thus no need for escalation), go to Step 5.

​
Step 2: Asking permission via Slack

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.
  2. Search and select the Asks questions via Slack Action.
  3. For the Step to work, a connection to Slack is required. On the right-hand corner of your Step, select Select Connection > slack_connection. If you do not have a Slack connection, click Create new connection.
  4. Click on Action #2 to change the name of the action to Asking a question via Slack.
  5. Enter the condition using the variable picker.
    ParameterDescriptionExample
    ApproverReceipts emails address or channel name.Random
    QuestionQuestion to be answered.*{{metadata.user_email}} is trying to use {{inputs.instance_type}}. Reason: {{inputs.reason}}
    AnswersCommas separating possible answersYes, No

​
Step 3: Using if Step to check answer

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.

  2. Select if Step using the icon:

  3. Enter the condition using the variable picker.
Left valueOperatorRight value
{{steps.S2.output}}EqualsNo
If the condition is met (answer is no), go to Step 4. If the condition is not met (answer is yes), go to Step 5.

​
Step 4: Abort Step

  1. Click and type Abort Step. No input parameters are required.

​
Step 5: Cloning the Git repository

  1. In the New section block, click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.
  2. Search and select the Github clone Action.
  3. For the Step to work, a connection to Github is required. On the right-hand corner of your Step, select Select Connection > github_connection. If you do not have a Github connection, click Create new connection.
  4. Click on Action #5 to change the name of the action to Cloning the Git repository.
  5. Enter the following parameters in your Step.
    • Repository URL: enter the URL of the Github repository you wish to clone.
    • Destination folder where you want to clone your repository.

​
Step 6: Installing the Terraform provider

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.
  2. Search and select the Terraform Action.
  3. For the Step to work, a connection to Terraform is required. On the right-hand corner of your Step, select Select Connection > aws_connection. If you do not have a AWS connection, click Create new connection.
  4. Click on Action #6 to change the name of the action to Installing the Terraform provider.
  5. Enter the following parameters in your Step.
    • Command:
  cd repository_folder
  terraform init

​
Step 7: Calculating the Plan to execute for Terraform

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.
  2. Search and select the Terraform Action.
  3. For the Step to work, a connection to Terraform is required. On the right-hand corner of your Step, select Select Connection > aws_connection. If you do not have a AWS connection, click Create new connection.
  4. Click on Action #7 to change the name of the action to Calculating the Plan to execute for Terraform.
  5. Enter the following parameters in your Step.
    • Command:
cd repository_folder

terraform plan -var="instance_type={{inputs.instance_type}}" --out=../out.txt > /dev/null

terraform show -json ../out.txt
The commands calculates terraform plan and stores it in out.txt file, then it shows this plan in a json format.

​
Step 8: Saving the plan to an AWS S3 bucket

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.
  2. Search and select the AWS CLI Action.
  3. For the Step to work, a connection to AWS is required. On the right-hand corner of your Step, select Select Connection > aws_connection. If you do not have a AWS connection, click Create new connection.
  4. Click on Action #8 to change the name of the action to Saving the plan to an AWS S3 bucket.
  5. Enter the following parameters in your Step.
    • Command:
    aws s3api put-object --bucket s3-bucket-with-versionning-enabled --key plan/out.txt --body ./out.txt
    • Region: s3 bucket region endpoint The command will store the out.txt file generated in the previous step into a S3 bucket that we assume exists and has versioning enabled.

​
Step 9: Using an if Step to control the workflow

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.

  2. Select if Step using the icon:

  3. Enter the following condition using expression language and built in function to detect if any resources will be deleted by the Terraform plan.
Left valueOperatorRight value
{{any(steps.S7.output.resource_changes, {'delete' in #.change.actions})}}equalstrue
If the condition is met (need escalation), go to Step 10. If the condition is not met (no deleted resources, thus no need for escalation), go to Step 13.

​
Step 10: Asking a question via Slack

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.
  2. Search and select the Asks questions via Slack Action.
  3. For the Step to work, a connection to Slack is required. On the right-hand corner of your Step, select Select Connection > slack_connection. If you do not have a Slack connection, click Create new connection.
  4. Click on Action #10 to change the name of the action to Asking a question via Slack.
  5. Enter the condition using the variable picker.
    ParameterDescriptionExample
    ToReceipts emails address or channel name.Random
    QuestionQuestion to be answered.Apply the following changes: {{steps.S7.output}} For more details, refer to expression language.
    AnswersCommas separating possible answersYes, No

​
Step 11: Using if Step to check answer

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.

  2. Select if Step using the icon:

  3. Enter the condition using the variable picker.
Left valueOperatorRight value
{{steps.S2.output}}EqualsNo
If the condition is met (answer is no), go to Step 12. If the condition is not met (answer is yes), go to Step 13.

​
Step 12: Abort Step

  1. Click and type Abort Step. No input parameters are required.

​
Step 13: Cloning the Git repository

  1. In the New section block, click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.
  2. Search and select the Git clone Action.
  3. For the Step to work, a connection to Github is required. On the right-hand corner of your Step, select Select Connection > github_connection.
  4. Click on Action #13 to change the name of the action to Cloning the Git repository.
  5. Enter the following parameters in your Step.
    • Repository URL: enter the URL of the Github repository you wish to clone.
    • Destination folder where you want to clone your repository.

​
Step 14: Fetching the plan from the AWS S3 bucket

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.
  2. Search and select the AWS CLI Action.
  3. For the Step to work, a connection to Terraform is required. On the right-hand corner of your Step, select Select Connection > aws_connection. If you do not have a AWS connection, click Create new connection.
  4. Click on Action #14 to change the name of the action to Saving the plan to an AWS S3 bucket.
  5. Enter the following parameters in your Step.
    • Command:
    aws s3api get-object --bucket s3-bucket-with-versionning-enabled --key plan/out.txt ./out.txt --version-id {{steps.S7.output.VersionId}}
    • Region: us-west-2

​
Step 15: Applying the changes in Terraform

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.
  2. Search and select the Terraform Action.
  3. For the Step to work, a connection to AWS is required. On the right-hand corner of your Step, select Select Connection > aws_connection.
  4. Click on Action #15 to change the name of the action to Applying the changes in Terraform.
  5. Enter the following parameters in your Step.
    • Command:
    cd repository_folder
terraform apply "../out.txt"

​
Step 16: Getting output in Terraform

  1. Click to open the Action panel. Alternatively, you can drag Actions to your flow, from the menu on the left side of your Edit screen.
  2. Search and select the Terraform Action.
  3. For the Step to work, a connection to AWS is required. On the right-hand corner of your Step, select Select Connection > aws_connection.
  4. Click on Action #16 to change the name of the action to Getting output in Terraform.
  5. Enter the following parameters in your Step.
    • Command:
cd repository_folder
terraform output -json

​
Defining output parameters

  1. Click Output parameter.
  2. Enter the following parameters: Name: alb_dns Value: {{steps.S11.output.alb_dns_name.value}}
  3. Click Apply.

​
Testing the Automation

You can test your Automation before you publish it.
  1. From the Edit mode, save your draft and do a Test run of your Automation.
  2. Enter input parameters you wish to test.
  3. Click Run. The entire Automation will run a dialogue box will inform you if your Automation was executed successfully or not.
  4. Click Go To Execution. You can see the output of each Step in the Output field on the right of your Step. In Session History, you can see the status of your Automation execution.
  5. When your Automation is successful, you can Publish it. This will over ride any previous versions created and published.

​
Exposing the Automation as a Request in the Self-service portal

Expose the Automation as a Request to make it available in the Self-service portal of other members.

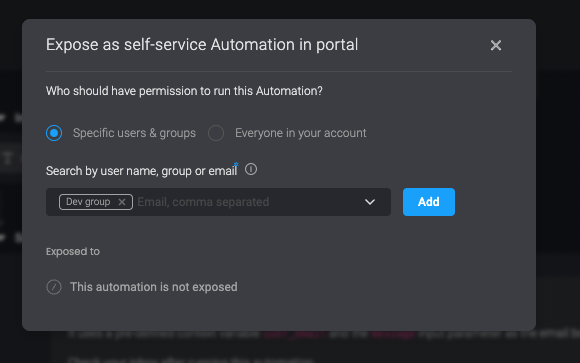

  1. On the Workflows screen, use the toggle to Expose in portal. The Expose as Request dialog box opens.
  2. Select one of the following:
    • Specific users and groups
    • Everyone in your account If users and groups was selected, in Add Members specify who you want to add.
  1. Click Add and exit the dialog box. Your changes will be saved.

  2. The Self-service portal is found on the top left of your screen, click > Portal. All Workflows exposed to you are presented. Users with access to this request can use the Automation by filling in the input parameters and running the Request. The creator will get notified every new run of the Automation for auditing purposes.
