Creating a Claroty xDome connection

Using API Token

To create the connection you need:

  • An API Address
  • An API Token

Obtaining the credentials

  1. Log in to Claroty xDome’s portal.

  2. Navigate to Settings > Admin Settings.

  3. On the User Management page, click on +Add User.

  4. Select API User and fill in the required details. Provide a unique username (make sure you don’t insert you Clroty xDome username), select Roles and Site Permissions. When finished, Click on Create User.

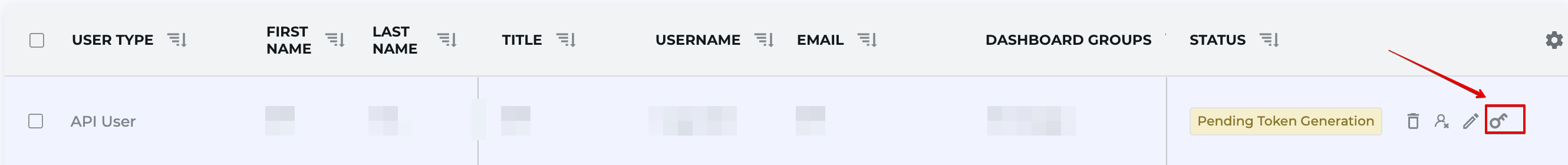

  5. Once the API user is created, press the Key icon to generate the token.

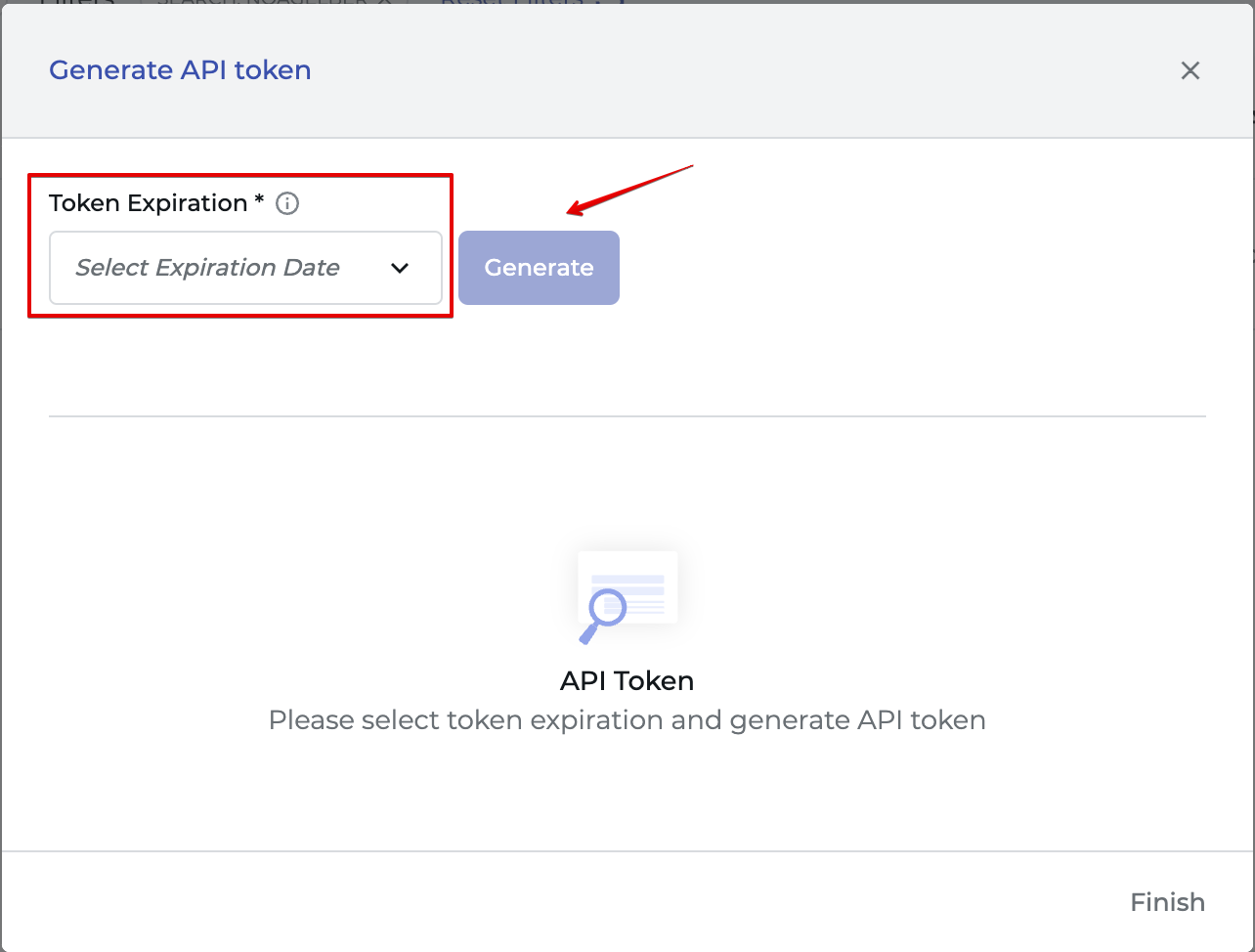

  6. Select the Token Expiration date and hit Generate.

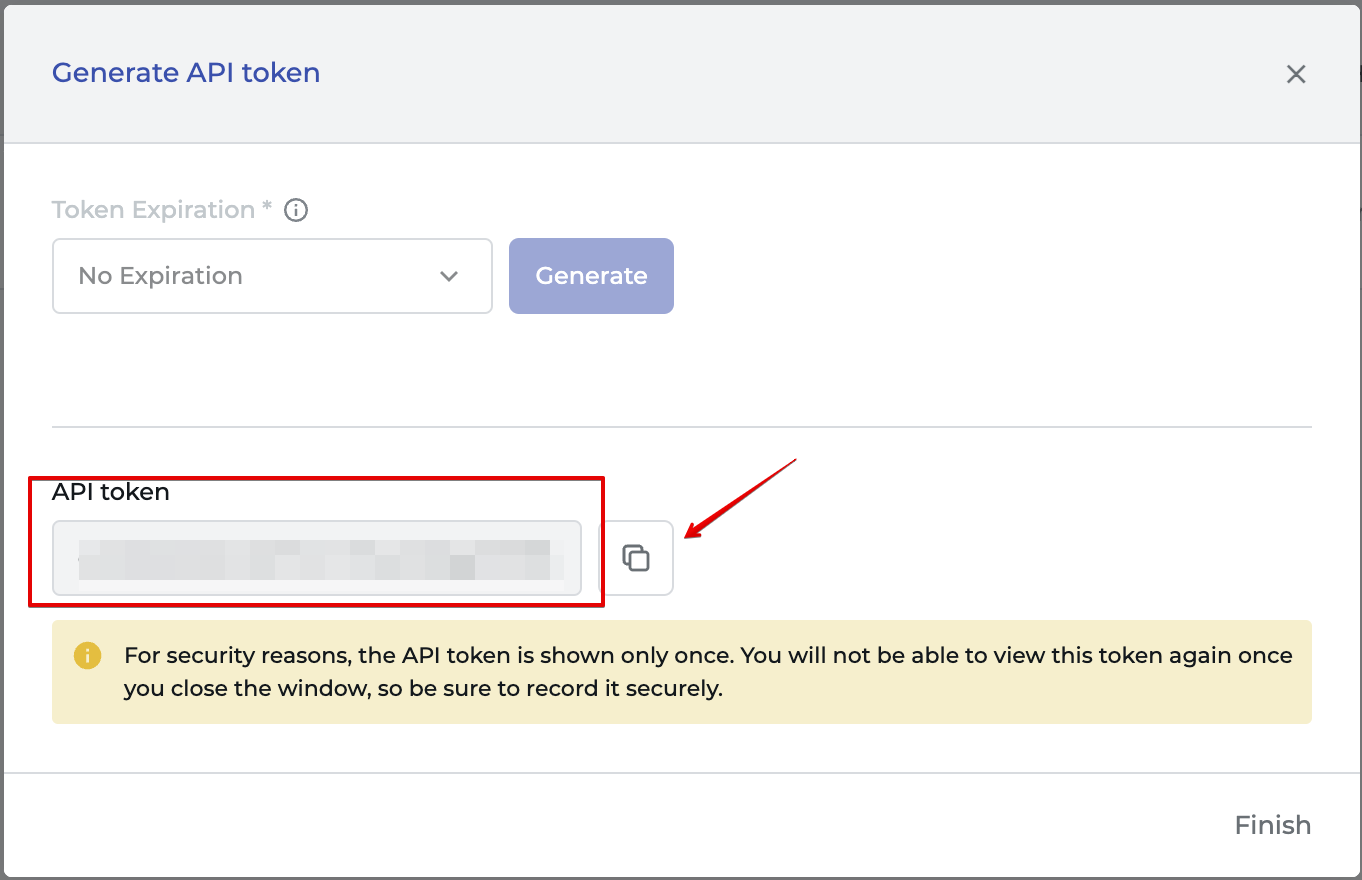

  7. Copy the generated token.

Creating your connection

  1. In the Blink platform, navigate to the Connections page > Add connection. A New Connection dialog box opens displaying icons of external service providers available.

  2. Select the Claroty xDome icon. A dialog box with name of the connection and connection methods appear.

  3. (Optional) Edit the name of the connection. At a later stage you cannot edit the name.

  4. Select API Token as the method to create the connection.

  5. Fill in the parameters:

    • The API Address
    • The API Token
  6. (Optional) Click Test Connection to test it.

  7. Click Create connection. The new connection appears on the Connections page.
